Category: Ceramic Fiber Products

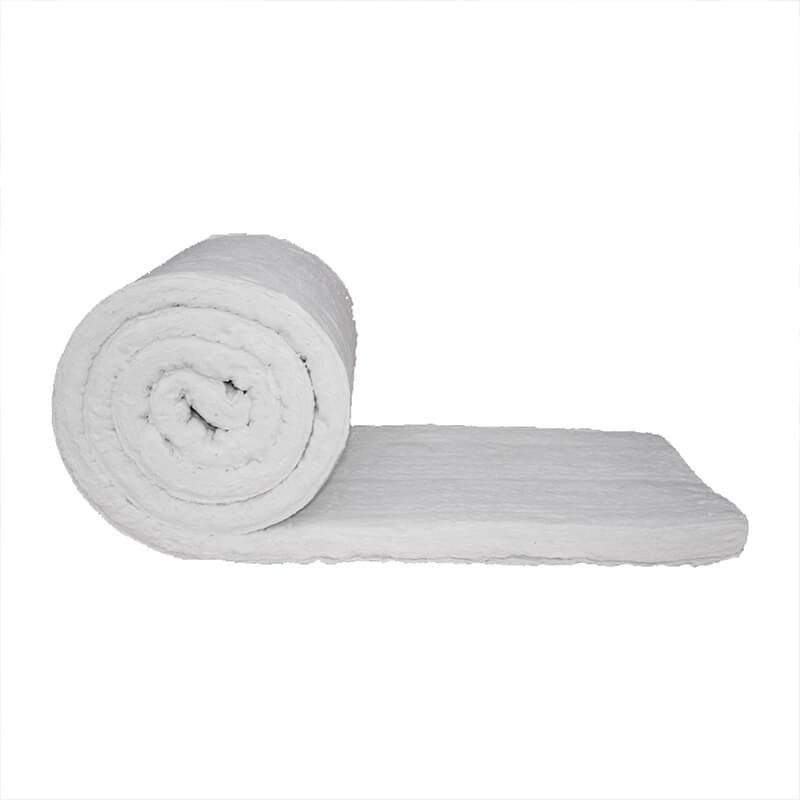

  • Ceramic Fiber Blanket

    Application of Ceramic Fiber Blanket

    Ceramic Fiber Blankets can be used in various applications which include Petrochemical, Refining, Steel, Ceramic, Glass, Fire Protection and Power Generation. This product can be fabricated and shop installed for most applications.

    Ceramic Fiber Blanket Description

    Classification temperature (℃) 1140 1260 1400 Testing Standards
    Brands LYGX-112 LYGX-212 LYGX-312 LYGX- 422 LYGX-512  – –
    Linear shrinkage (%) 950℃X24h5≤-3 1000℃X24h5≤-3 1100℃X24h5≤-3 1200℃X24h5≤-3 1350℃X24h5≤-3 GB/T17911
    Thermal conductivity(W/mK)(128Kg/m3) ≤0.153 YB/T4130
    (Average500℃)
    Compressive strength(h(thickness 25mm) ≥0.04 ≥0.05 ≥0.04 ≥0.06 GB/T17911
    Bulk dencity (Kg/m3) 64/96/128/160 GB/T17911
    Chemical composition (%) Al2O3 (%) ≥44 ≥45 ≥45 ≥53 ≥36 GB/T6900 GB/T4984
      Sio3 (%) ≥52 ≥52 ≥54 ≥46 ≥48
      Zro3 (%)   __ __   __   __ _   __ _ ≥15
      Fe2o3 (%) ≤1.0 ≤0.8 ≤0.2 ≤0.2 ≤0.1
      AL2o3 +SiO2 (%) ≥96 ≥97 ≥99 ≥99
      AL2o3 +Sio2 (%)   __ __   __   __ _   __ _ 99
    Available size (mm/roll) 3600/7200X610X20/30/50   __
    Packaging Inside Plastic bag,outside woven bag Carton   __

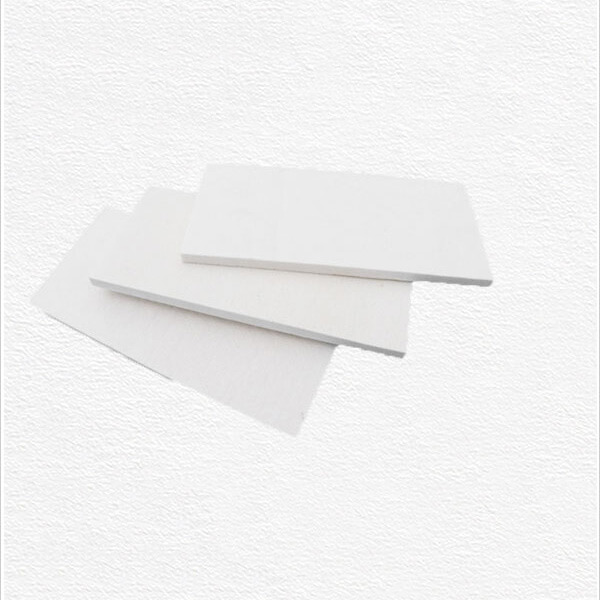

  • Ceramic Fiber Board

    Ceramic Fiber Board Description

    Items STD RFC Board HP RCF Board HZ RCF Board
    Bulk Density(Kg/m3) 280/300/320 280/300/320 280/300/320
    Classification Temperature (℃) 1260 1260 1430
    Maximum Operating Temperature(℃) 1100 1200 1350
    Water Content(%) ≤1 ≤1 ≤1
    Linear Shrinkage After Heating(%) 1000℃*24h<2.5 1100℃*24h<2.5 1350℃*24h<2.5
    Thermal Conductivity(W/mK)
    200℃ 0.074 0.055 0.078
    400℃ 0.092 0.073 0.102
    500℃ 0.103 0.086 0.116
    600℃ 0.127 0.105 0.135
    Cold Crushing Strength(Mpa) 0.2 0.12-0.2 0.12
    Loss Of Lgnition(wt%) ≤7 ≤7 ≤7

    Ceramic Fiber Board Application

    Use in industrial heat process equipment
    High temperature gasket & seals
    Flue & chimney linings in furnace & kilns
    Molten metal trough covers
    Expansion joint Industrial heat shields & thermal barriers
    Industrial combustion chamber construction
    Infra red element supports
    Board over blanket hot face lining
    Full thickness refractory lining
    High temperature boiler wall insulation
    Pouring forms for castable
    Lining material for glass annealing furnace
    Various fire-resistant insulation materials
    Insulation for semiconductor equipment

    Ceramic Fiber Board Manufacturer

    Ceramic fiber boards produced by RS refractory brick are adopting high quality raw material and produced through strict control. RS refractory manufacturer is specialized in producing various ceramic fibers, such as ceramic fiber blankets, ceramic fiber boards, ceramic fiber papers, ceramic fiber wools, ceramic fiber ropes, ceramic fiber cloths. If you have any purchase plan for ceramic fiber refractory materials, please feel free to contact with us!

  • Ceramic Fiber Module

    RONGSHENG ceramic fiber module use the enhanced H-type anchors, which have greater strength, closer to the cold face. It can make sure the strength in high temperature. The fixed link was welding together with the high quality heat-resistance steel and stamping butterfly plate. The two round fixed link were embedded in the module system, enlarged the bearing area and ensured the firm of anchor system.

    Characteristics

    Low bulk density,low thermal conductivity.
    Resistance to heat-shock, ability to resist the scouring of airflow.
    Excellent mechanical strength ,built-in anchor, safety performance.
    Easy to install. after installing the lining form a seamless space, good insulation effect.

    Application of Ceramic Fiber Module

    Ceramic Industry:Tunnel kiln, shuttle kiln, roller kiln.
    Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc.
    Iron and Steel Industry: Ladle cover, annealing furnace,rotary furnace,bell furnace,walking beam furnace，hot air and flue pipes etc.
    Green energy industry：Waste incinerators, RTO exhaust treatment furnace, SCR environmental catalytic stove etc.

    Technical Index

    Ceramic Fiber Module RS1050 RS1260ST RS1260HP RS1350
    HA    		 RS1430
    Zr    		 RS1600
    PMF
    Classification Temperature 1050 1260 1260 1350 1430 1600
    192kg/m3/at()℃/24h
    Linear Shrinkage Rate    		 ≤2.0
    (850℃)    		 ≤2.0
    (1000℃)    		 ≤2.0
    (1050℃)    		 ≤2.0
    (1100℃)    		 ≤2.5
    (1200℃)    		 ≤1.5
    (1450℃)
    Density (KG/M3） 172-240 172-240 172-240 172-240 172-240 172-240
    Thermal Conductivity Rate(W/m.k) 400℃ 0.08 0.08 0.08 0.08 0.08 –
      600℃ 0.15 0.15 0.15 0.12 0.12 0.12
      800℃ 0.22 0.20 0.19 0.18 0.16 0.15
      1000℃ – – 0.22 0.12 0.19 0.18
    Chemical Composition（%） Al2O3 42-44 45-46 47-49 52-55 34-36 72-75
      Al2O3+SiO2 ≥99.0 ≥99.0 ≥99.0 ≥99.0 ≥99.0 ≥99.0
      ZrO3 – – – – 15-17 –
      Other ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0

    Standard Size and Package

    (300-600)*300*(150-300)mm，(Other specifications according to customer’s inquires).
    Density:172KG/M3、192KG/M3、220KG/M3、240KG/M3
    Package：Carton+Pallet.
    Installation：RONGSHENG also provide professional construction guidance and installation services.

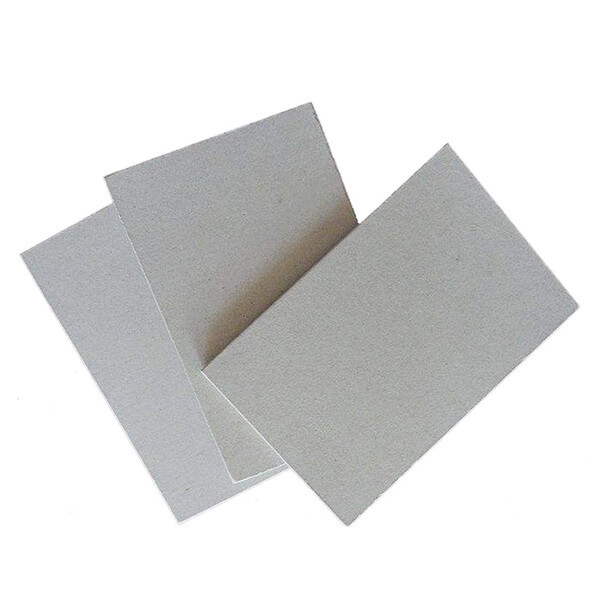

  • Calcium Silicate Boards

    Heat Preservation Calcium Silicate Board

    Heat preservation calcium silicate board is also called micro pore calcium silicate, it is white, hard, new type heat preservation material, with low volume weight, high strength, low thermal conductivity, high temperature resistance, corrosion resistance, can be cut or sawed. The thickness is usually above 30mm, bulk density is between 200~1000kg/m3.

    The Characteristics of Calcium Silicate Board

    High strength, low volume density.
    Has good processing property and fire resistance.
    Low thermal conductivity, excellent heat insulating performance.
    Good water proof property, won’t expand or deform at wet atmosphere.
    Long service life, alkali and acid corrosion resistance.

    Calcium Silicate Products Physical Index

    Item Model I Model II
    Density  kg/m3 240 240
    Bending strength Kpa 310 310
    Crushing strength (5% deformation) Kpa 414 414
    24 hours heat-holding treatment temperature ℃ 649 871
    Linear shrinkage rate % 2.0 2.5
    Warping mm 6 6

    Calcium silicate boards applications

    Calcium silicate boards are used as heat preservation material for thermal tubes, industrial furnaces and kilns, the application industries cover power plant, chemical industry, metallurgy, shipbuilding industry and so on. Calcium silicate board is used as fire-proof and heat insulating material for buildings and apparatus. The insulating lining of high temperature drying kiln and tunnel kiln car working table is also made by calcium silicate boards. The two sides of calcium silicate board can be adhered with plastic decoration board, plywood, asbestos cement board and so on to form composite board, which has the function of decoration and fireproofing, as well as sound insulation.
