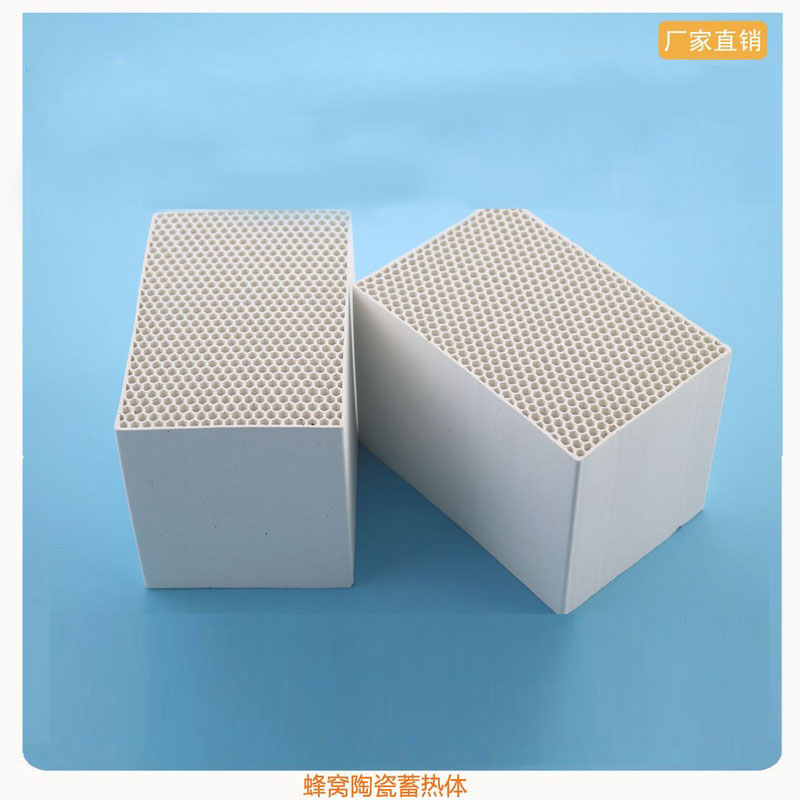

The regenerative high-temperature air combustion method (HTAC) is a new combustion technology with great energy-saving and environmental protection functions. The honeycomb ceramic regenerator, also known as ceramic regenerator and ceramic honeycomb, is a key components of regenerative burner, widely used in steel, machinery, building materials, petrochemical, non-ferrous metal smelting and other industries, such as push-type heating furnaces, step-type heating furnace, heat treatment furnace, ladle/ tundish roaster, forging furnace, melting furnace, soaking furnace, radiant tube burner, hood furnace, blast furnace hot blast stove, oil and gas boiler; various ceramic kiln in building materials industry, various glass kiln; various tubular heating furnace, cracking furnace and other in petrochemical industry furnaces.
The technology is to make two regenerative alternating heat absorption exotherms through the reversing device, to recover the heat of the flue gas to the maximum limit, and then to heat the combustion air and gas in the furnace to above 1000 C, it can achieve stable ignition and efficient combustion even the low calorific value of the inferior combustion, saving fuel up to 40-70 °C. The output will be increased by more than 15 °C, the oxidation loss of the steel embryo will be reduced by more than 40%, the NO2 emission will be less than 100 pm, and the exhaust gas temperature will be lower than 150″C, which greatly reduces the greenhouse effect of the earth’ s atmosphere. If most of industrial furnaces in the country adopt HTAC technology, its economic and social benefits are immeasurable, which will greatly alleviate the shortage of energy and improve the living environment of human beings. Since its launch in the market, it has achieved good results and is favored by the steel smelting industry.
| L*W*G(mm) | Number of cell | Cell Width(mm) | Thickness of Inner Wall(mm) | Thickness of Out Wall(mm) | Surface Area(m2/m3) | Opening Ratio % | End Face Shape |
| 200x100x100 | 20×9 | Round∮8.5 | 2.3 | 2.5 | 280 | 51 | Flat、Bevel、Single Groove、Double Groove |
| 150x 100×100 | 36×24 | Square3x3 | 1.0 | 1.2 | 731 | 52 | |
| 150x 100×100 | 35×20 | Hexagonal∮4 | 1.0 | 1.2 | 687 | 65 | |
| 150x 100×100 | 10×6 | Hexagonal∮12 | 4.0 | 4.0 | 210 | 50 | |
| 150x 150×100 | 35×20 | Hexagonal∮3.5 | 0.8 | 1.5 | 686 | 63 | |
| 150x 100×100 | 35×19 | Round∮4 | 1.0 | 1.3 | 568 | 53 | |
| 150x 100×100 | 15×9 | Round∮8.5 | 2.3 | 2.5 | 280 | 51 | |
| 150x 100×100 | 42×28 | Square2.6×2.6 | 1.0 | 1.1 | 815 | 53 | |
| 150x 100×100 | 7×6 | Hexagonal∮12 | 4.0 | 4.0 | 224 | 52 | |
| 100x 100×100 | 31×31 | Square2.65×2.65 | 0.7 | 1.0 | 1065 | 67 | |
| 100x 100×100 | 24×24 | Square3x3 | 1.0 | 1.2 | 731 | 52 | |
| 100x 100×100 | 23×20 | Hexagonal∮4 | 1.0 | 1.2 | 608 | 64 | |
| 100x 100×100 | 10×9 | Round∮8.5 | 2.3 | 2.5 | 280 | 51 |
| Item | Corundum-mullite | Mullite | Cordierite-mullite | Cordierite | Chrome Corundum-mullite | Zirconium Corundum-mullite |
| Bulk density (g/cm3) | ≥0.8 | 0.6~1.1 | 0.6~0.9 | 0.5~0.8 | ≥0. 8 | ≥0. 8 |
| Thermal Expansion Coefficient
(X10-60°C-1) (RT-800°C) |
≤6 | ≤5.5 | ≤3 | ≤2.5 | ≤6.5 | ≤6 |
| Specific heat capacity
(J.(Kg.k)-1 ) |
≥800 | ≥800 | ≥750 | ≥750 | ≥800 | ≥800 |
| Thermal Shock (°C) | ≥300 | ≥300 | ≥400 | ≥500 | ≥300 | ≥350 |
| Softening
temperature under load (°C) (0.1MPa ) |
≥1500 | ≥1450 | ≥1350 | ≥1250 | ≥1500 | ≥1500 |
| Compressive Strength
(MPa) (C axis) |
≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 |
| Compressive Strength(Mpa) (A、 B axis) | ≥4 | ≥4 | ≥3 | ≥3 | ≥4 | ≥4 |
| Item | Corundum-mullite | Mullite | Cordierite-mullite | Cordierite | Chrome Corundum-mullite | Zirconium Corundum-mullite |
| SiO2 | 20~30 | 25~35 | 40~50 | 28~38 | 20~25 | 28~38 |
| Al2O3 | 65~75 | 55~65 | 40~50 | 45~55 | 65~75 | 45~55 |
| MgO | ≤0.5 | ≤1 | 5~9 | 11~14 | ≤0.5 | 11~14 |
| Fe203+TiO2 | 1~4 | 1~4 | 1~3 | 1~3 | 1~3 | 1~3 |
| Others | ≤5 | ≤5 | ≤5 | ≤5 | ≤8 | ≤5 |
